Gray Paper Corrugated Paper and Color Box Cutting machine

Discount PRICE:US$6000.00
Status:In Stock
Model NO.:

HDCH300906

HDCH301209

HDCH301512
Quantity:
Add to Collection Inquire Now
View Large Image

Item Name:Gray Paper Corrugated Paper and Color Box Cutting machine
Model no.:HDCH300906
Brand Name:HMW/OEM
Added time:2024/5/11 11:16:44
G.W.:0.00KG
Origin:Dongguan,China
Category:

HDCH30 series laser position paper box cutting machine
Induction：

The HDCH30 series laser position paper box cutting machine is developed from the product of HDCH10 series Apart from the functions same with that of HDCH10, this range of paper box cutting equipment is also designed with the function of laser positioning, making the product particularly suitable for cutting the printed PVC board and cardboard. Accurate positioning is realized through perfect matching between the laser and the preprinted mark on the printed material This laser position paper box cutting machine is distinguished by high accuracy and simple operation. In addition to cost saving for cutting mould, this paper box cutter supports convenient adjustment and fast speed, helping user to win orders easily. This product also called box sample maker, PVC box sample maker, sample maker, Ads cutting machine and so on, according to the different cutting material and application.
Main features：

Dual tool head: press roll and special knife

It supports material cutting and creasing at one stroke.

Low maintenance cost

Simple operation, accurate positioning

Cutting materials:
card paper, foam, thin PVC, grey board etc.

Application:

This machine can be used to make samples, cut and small production in the industries Packaging, Graphic, Ads and so on.

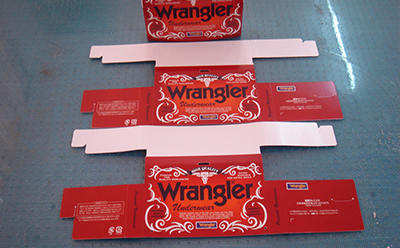

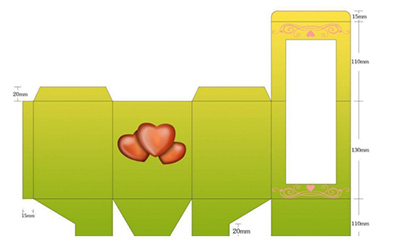

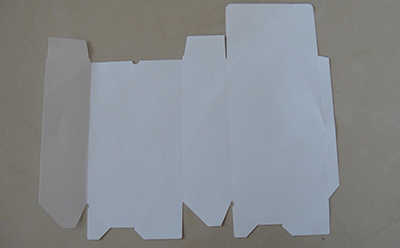

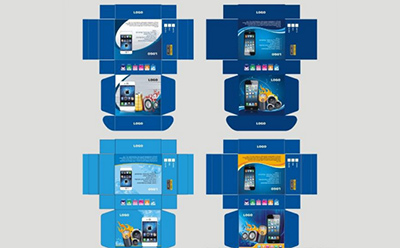

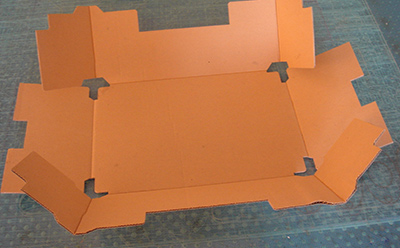

Cutting samples:

Specification:

Mode	HDCH300906	HDCH301209	HDCH301512
Effective cutting area	900*600mm	1200*900mm	1500*1200
Configuration	Pen, special knife, creasing tool, laser position
Way of fixing paper way	Vacuum absorbing
Max speed	1000mm/s
Driving material	Import steel belt
Cut materials	Red hard paper、plastic board、white board、kraft paper、thin PVC
Driver	Step motor
Cutting way	Drawing by pen、half cutting、whole cutting
Precision	≤0.1mm
Maximum cutting thickness	0.5-2mm
Data form	HPGL,DXF,PDF
Working time and character	Continuous work, operating computer and cutting at the same time, linear high-speed transmission for data.
Voltage	220v±10% 50Hz
Data port	PCI port
Input cushion area	32MB
*Occupy dimension(LWH)*	133510651080mm	163513651080mm	193516651080mm
Note	Other size can be customized.
